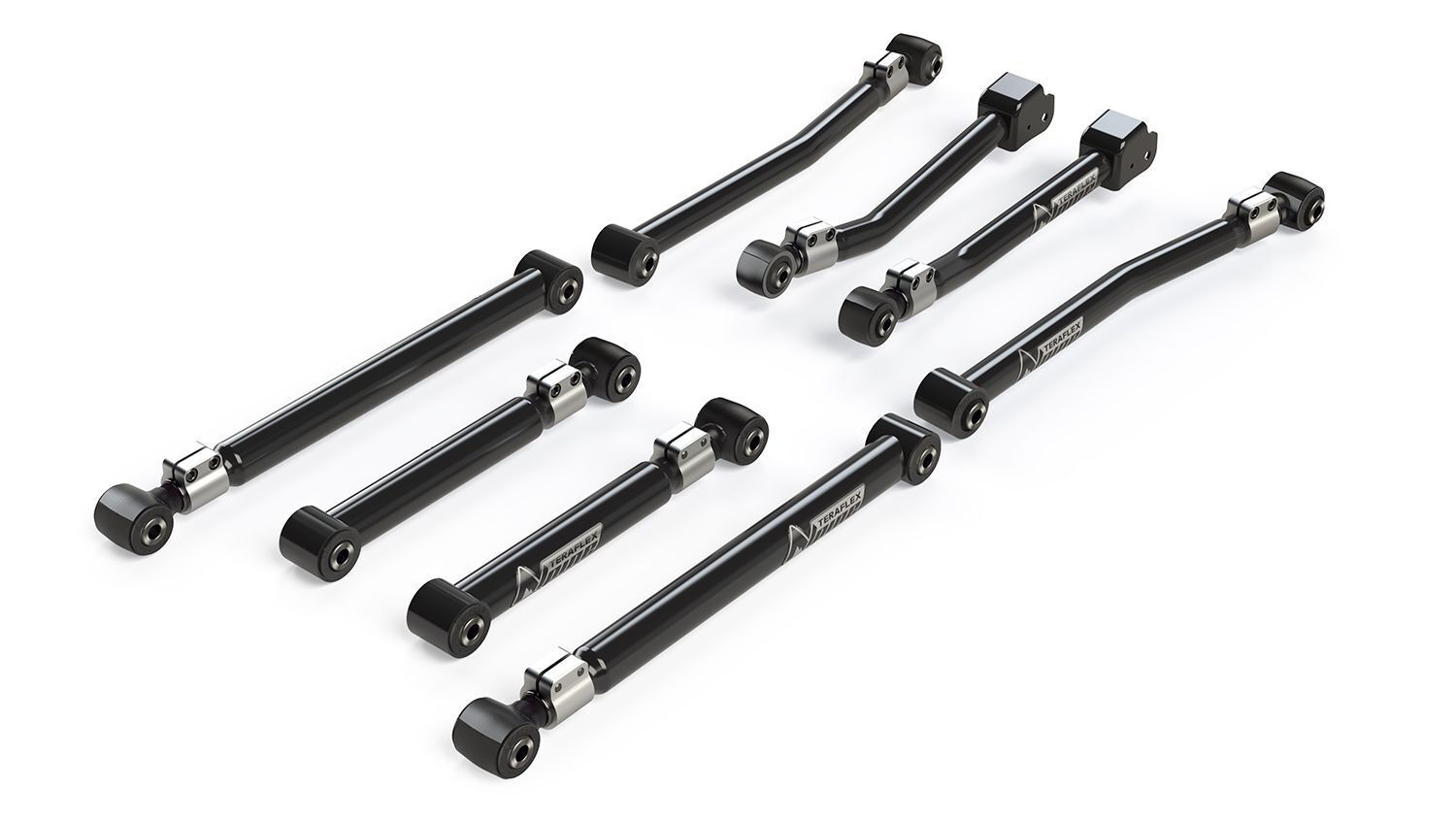

JT Complete 8 Adjustable Alpine Control Arm Kit
TeraFlex JT: Alpine Short Control Arms provide complete alignment adjustability and dependability for maximum performance on JT Gladiator models with 0-4.5" lifts. Bolts to the factory control arm mounting brackets. Can be added to any existing suspension lift. High-quality dependable maintenance-free factory-style bushings provide excellent NVH damping and ride quality.
Features
JL / JT Alpine Short Control Arms
Adjustable Alpine Short Control Arms balance front caster angle and pinion angles as well as optimize rear pinion angle and tune anti-squat geometry for proper suspension alignment on 0-4.5" lift kits Alpine Short Control Arms are constructed from durable 42mm x 4mm wall DOM tube for maximum strength Bolts to the factory control arm mounting brackets
JL / JT Alpine Control Arms (all)
Re-centers axles in the wheel well for proper suspension movement. Can also be used to increase wheelbase
Full range of movement will not restrict articulation or flex off-road
High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH (noise, vibration, and harshness) damping and ride quality
Zero maintenance forged threaded joints for smooth quiet flex
Premium black e-dipped coating on tube and forged rod end housing provides superior durability and corrosion resistance
Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment
Install and drive simple bolt-on installation – no welding required
TeraFlex Lifetime Warranty against defects
Fits
JT Gladiator (pickup)
0-4.5" Lift
Control Arm Specs
JL / JT: Alpine Short Control Arm Kit – Front Upper (# 1416520):
Tube Diameter & Wall = 42mm x 4mm
Factory Length = 20.185"
Min. Length = 20"
Max. Length = 21"
Both Ends = 14mm Bolt
JL / JT: Alpine Short Control Arm Kit – Front Lower (# 1416500):
Tube Diameter & Wall = 42mm x 4mm
Factory Length: 24"
Min. Length: 24"
Max. Length: 25.25"
Both Ends: 16mm Bolt
JT: Alpine Short Control Arm Kit – Rear Upper (# 1417530):
Tube Diameter & Wall = 42mm x 4mm
Factory Length = 16-3/8"
Min. Length = 16-1/8"
Max. Length = 17-3/8"
Both Ends = 16mm Bolt
JT: Alpine Short Control Arm Kit – Rear Lower (# 1417540)
Tube Diameter & Wall = 42mm x 4mm
Factory Length = 23-3/4"
Min. Length = 23-1/2"
Max. Length = 24-3/4"
Both Ends = 16mm
Both Bushings = # 611011
