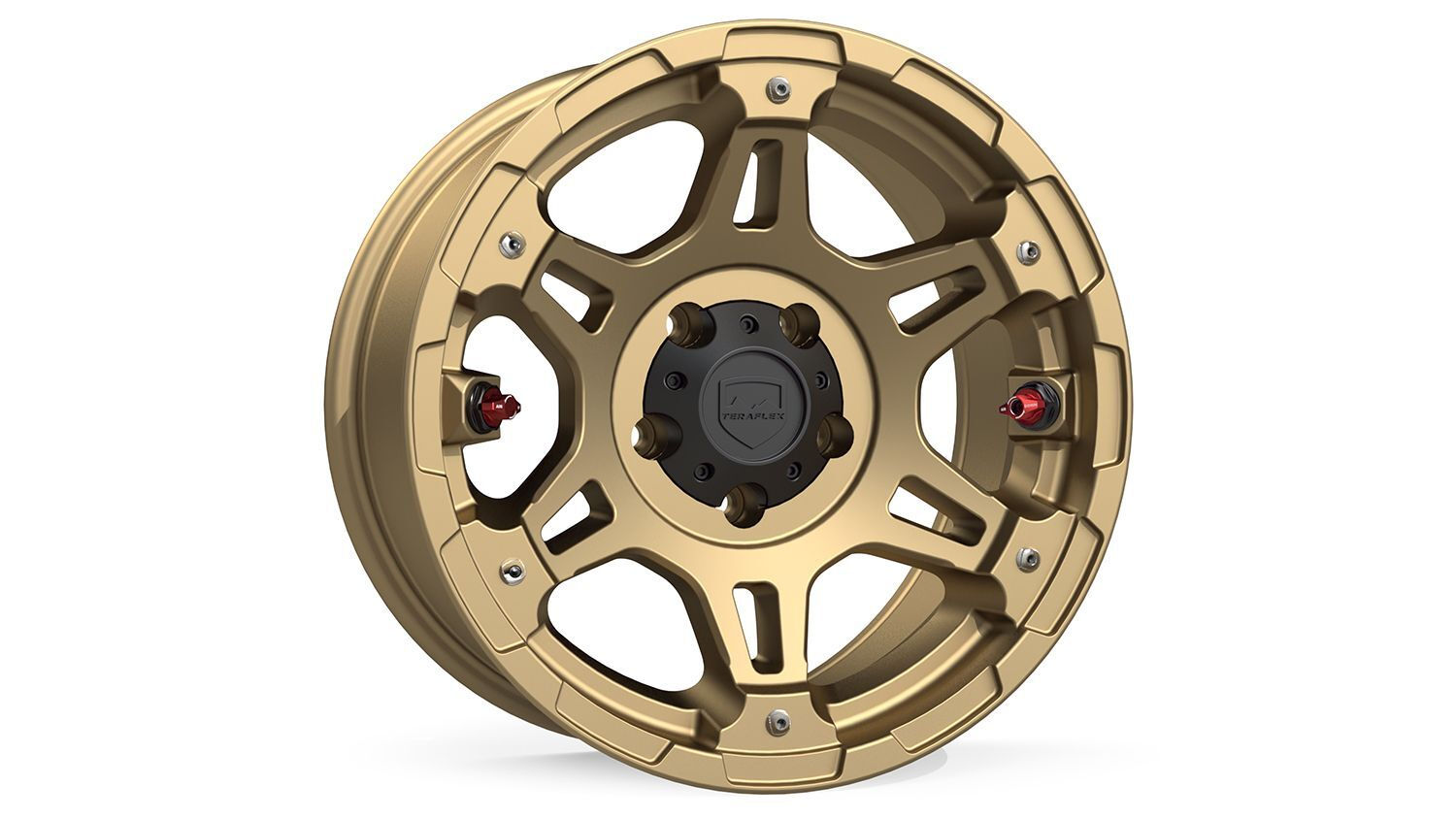

Nomad Split Spoke Bronze, 5x5 (5/127) 17x8.5

Round out your build with a set of these tough and durable TeraFlex Nomad Split Spoke Off-Road Wheels. These cast alloy wheels feature a reinterpretation of the classic split spoke, six-hole design.

Key Features

• Engineered with a “form follows function” philosophy resulting in a technical look.

• With its Modular Plug System, TeraFlex Off-Road Wheels are the only wheels compatible with our proprietary Air Deflator Valve that allows you to quickly air down your tires to a preset pressure.

• An adjustment screw allows you to set the preset pressure at any psi as low as 10 psi.

Fits

• JL Wrangler (2-door)

• JL Wrangler Unlimited (4-door)

• JT Gladiator (pickup)

• JK Wrangler (2-door)

• JK Wrangler Unlimited (4-door)

Specs

• Diameter x Width: 17” x 8.5”

• Bolt Pattern: 5x5”

• Offset: -12mm

• Back Spacing: 4.25”

• Hub Bore: 71.5mm

• Finish: Bronze

Includes

• Nomad Off-Road Wheel

• Center Cap – 5x5” (# 1056004)

• Fully encapsulated Schrader Valve Stem Housing & Cap (# 1056001)

• Wheel Plug (# 1056002)

Features & Benefits

Nomad Off-Road Wheel

• Cast from heat treated A356-T6 aluminum

• Strong enough to handle 40” tires

• Locking beads seat knurling allows for safely running lower air pressure

• Lack of “water troughs” prevents water pooling

• Dual-stage clear powder coat w/ UV inhibitors

• Easy to clean finish

• Modular Plug System accepts Air Deflator Valve, Schrader Valve Stem Housing & Cap, or Air Deflator Plug

• Symmetrical valve holes for balance

• Fully encapsulated Schrader Valve to keep out contaminants

Air Deflator Valve

• Air Deflator Valve allows you to quickly air down your tires to a preset pressure

• Adjustment screw sets spring preload

• Allows pressure to be preset to as low as 10 psi

• Releases up to 40x more air than Schrader valve for quick air down

• O-ring seal ensures air blows contaminates away from air release orifices

• Viton O-ring can be changed w/out disassembly

• O-ring seals pressures up to 3,500 psi

• Black and red anodized finish

Note(s)

NOT recommended for use with balance beads or fix-a-flat tire sealants.
