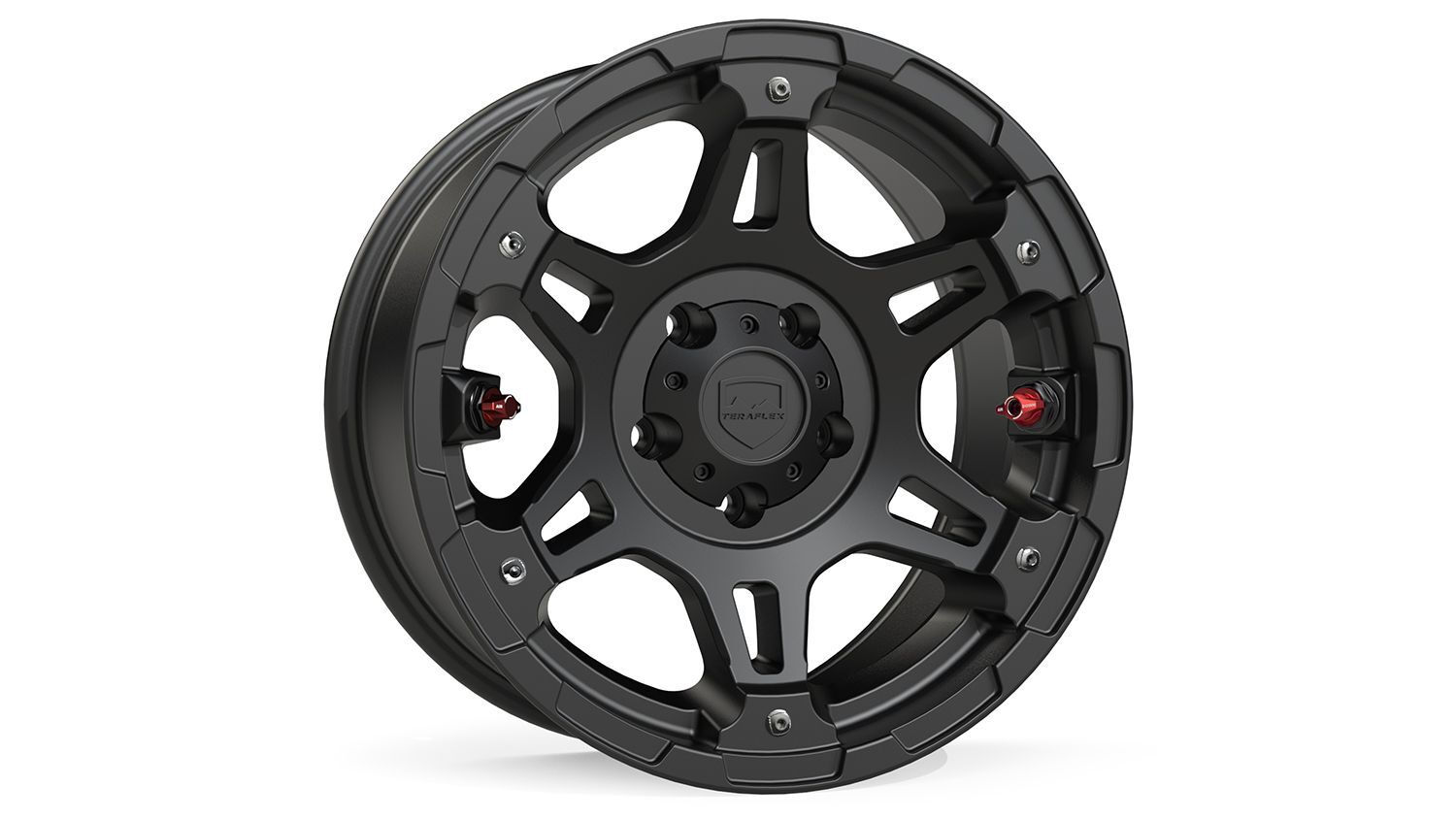

Nomad Split Spoke Metallic Black, 5x5 (5/127) 17x8.5
Round out your build with a set of these tough and durable TeraFlex Nomad Split Spoke Off-Road Wheels. These cast alloy wheels feature a reinterpretation of the classic split spoke, six-hole design.
Key Features
Engineered with a “form follows function” philosophy resulting in a technical look.
With its Modular Plug System, TeraFlex Off-Road Wheels are the only wheels compatible with our proprietary Air Deflator Valve that allows you to quickly air down your tires to a preset pressure.
An adjustment screw allows you to set the preset pressure at any psi as low as 10 psi.
Fits
JL Wrangler (2-door)
JL Wrangler Unlimited (4-door)
JT Gladiator (pickup)
JK Wrangler (2-door)
JK Wrangler Unlimited (4-door)
Specs
Diameter x Width: 17” x 8.5”
Bolt Pattern: 5x5”
Offset: -12mm
Back Spacing: 4.25”
Hub Bore: 71.5mm • Finish: Metallic Black
Includes
Nomad Off-Road Wheel
Center Cap – 5x5” (# 1056004)
Fully encapsulated Schrader Valve Stem Housing & Cap (# 1056001)
Air Deflator Valve (# 1056000)
Features & Benefits
Nomad Off-Road Wheel
Cast from heat treated A356-T6 aluminum
Strong enough to handle 40” tires
Locking beads seat knurling allows for safely running lower air pressure
Lack of “water troughs” prevents water pooling
Dual-stage clear powder coat w/ UV inhibitors
Easy to clean finish
Modular Plug System accepts Air Deflator Valve, Schrader Valve Stem Housing & Cap, or Air Deflator Plug
Symmetrical valve holes for balance
Fully encapsulated Schrader Valve to keep out contaminants
Air Deflator Valve
Air Deflator Valve allows you to quickly air down your tires to a preset pressure
Adjustment screw sets spring preload
Allows pressure to be preset to as low as 10 psi
Releases up to 40x more air than Schrader valve for quick air down
O-ring seal ensures air blows contaminates away from air release orifices
Viton O-ring can be changed w/out disassembly
O-ring seals pressures up to 3,500 psi
Black and red anodized finish
Note(s)
NOT recommended for use with balance beads or fix-a-flat tire sealants.
